Infrared Heating Panel (1205x905mm) | Framed Series | 1100w | - Infrared Heating Supplies - 1

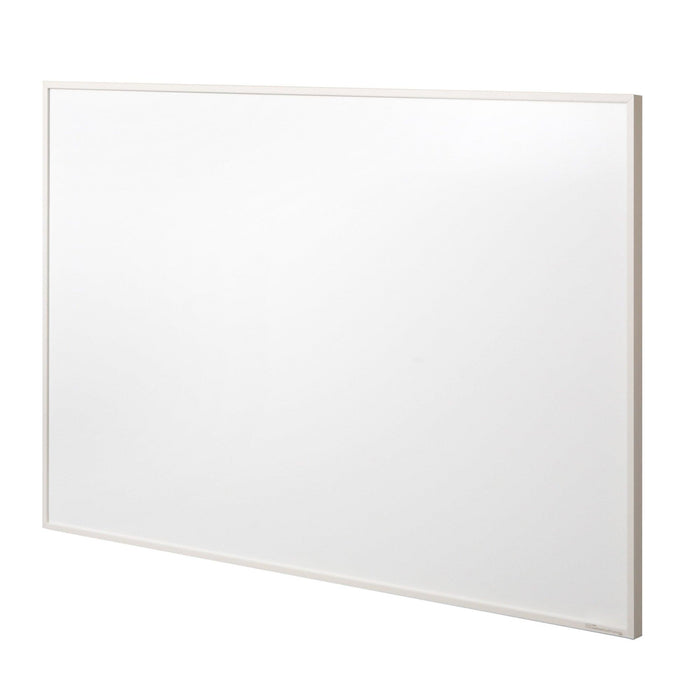

Infrared Heating Panel (1205x905mm) | Framed Series | 1100w |

SKU PH12090GT1100
Sold out
£277.00 - £277.00
£277.00
£277.00 - £277.00
£277.00
Availability:
Out of stock

Key Features

  • Super slim - white aluminium finish
  • WIFI Control - Netmostat - sold separately
  • Can be portable - accessories sold separately
  • Easy install
  • 10 year warranty
Secure checkout UK support 30-day returns
Not sure which wattage you need? Every space is different. Calculate the recommended heating requirement for your room.
Calculate my wattage
COMPARE OTHER OPTIONS IN THIS RANGE
Other options available Compare sizes, outputs and prices from this product range.

Free UK delivery

View delivery details
Infrared Heating Panel (1205x905mm) | Framed Series | 1100w | £277.00
PRODUCT DETAILS

Powerful, Silent, and Efficient Comfort - Engineered by RADI8

Transform the way you heat your home or workspace with the RADI8 1100W framed infrared panel, a next generation heating solution designed in the UK to deliver long lasting warmth without compromise. Designed for stylish homes and efficient commercial environments, this ultra efficient infrared heater combines elegant aesthetics with the latest in low energy radiant heat technology.

The high grade heating element emits gentle far infrared waves that warm people and surfaces directly, not the air. The result is a uniquely comfortable environment that retains heat better, reduces cold spots, and improves energy efficiency by up to 60% compared to conventional convection systems.

Its slim aluminium frame and minimalist white finish ensure it blends effortlessly with modern interiors. It can be wall mounted to save floor space, and also offers optional portability with the right accessories. Clean lines, no noise, and no moving parts - just beautifully distributed radiant heat.

This 1100W model is designed to effectively heat spaces up to 18m², depending on insulation and usage. It’s ideal for well insulated rooms, design conscious homes, or retrofits aimed at cutting energy bills while maintaining superior comfort.

Product information
Specifications
Wattage 1100w
Dimensions(mm) 1205 x 905 x 22
Surface Material Premium Ceramic Coating - Aluminium
Voltage 220-240V/50Hz
IP Rating IP54 – Splash and Dust proof
Surface Temperature 75-95°C
Weight 10.3kg
Recommended Fixing Wall
Quality & Safety UKCA, CE, Rohs, Lot 20 (when used with our smart thermostat)
Warranty 10
Controls & Accessories
Smart Thermostat – Netmostat - Infrared Heating Supplies - 1
Smart thermostat – netmostat
£85.00
View Details
Delivery & Returns
Mainland UK Delivery
Orders are normally dispatched on a next working day delivery service once your order is ready to leave us.

Non-Mainland UK
Deliveries to non-mainland UK locations typically take 3–5 working days.

International Delivery
For Ireland and international orders, please contact our team for delivery options and shipping costs.

30-Day Returns
Changed your mind? Eligible products can be returned within 30 days in accordance with our Returns Policy
View Returns Policy
Installation & Maintenance
This compact white infrared panel heater includes pre-installed brackets for easy wall mounting, they can also be suspended from a ceiling with our suspension kits, can be ceiling mounted using our specially made ceiling brackets, and can be made portable using our feet accessory. As there are no moving parts, there is no maintenance required for our panel heaters. They can be cleaned with a damp cloth when switched off

This panel can be mounted vertically and horizontally on the wall. They cannot be mounted on a ceiling. See our range of ceiling mount panels

This panel comes with a 13 Amp 3 pin plug, however we do recommend to hardwire it to your mains via a thermostat and fused spur

Safety
All our infrared heaters feature overheat protection, limiting the surface temperature from 75°C to 95°C, and all heating panels comply with safety standards (CE, UKCA, TüV, GS)
Downloads
Instruction Manual ↓ Product Datasheet ↓
RADI8 PRODUCT FEATURES

Designed around better heating.

Discover the features that make our infrared wall panels a discreet and practical heating solution for modern spaces.

Infrared Wall Panels installed in an interior

Advanced Infrared

Radiant warmth is delivered directly into the room without relying on forced-air circulation.

Sleek Design

A slim, contemporary profile designed to integrate neatly into modern interiors.

Easy Installation

Designed for straightforward installation with mounting options suited to the heater and application.

Discreet Heating

Free up valuable floor space with heating designed around your room rather than traditional radiators.

Comfortable Radiant Warmth

Infrared technology delivers radiant warmth without relying on fans or forced-air circulation.

Efficient Zone Heating

Heat individual rooms or areas independently, giving you greater control over where heating is used.

HEATING CONTROLS
Hand-holding phone with no word on the screen

Control Your Infrared Heaters with our Smart Thermostat

Our infrared heating panels are compatible with our smart thermostats, providing you with control over a app as well as a wall mounted thermostat. You can easily turn the panel on or off, set the desired temperature, and schedule heating times with the 7 day timer feature. To connect the thermostat, you must hardwire the panel to thermostat and the mains. We recommend using a electrician to comply with regulations and safety standards

Upgrade your heating system today with our classic infrared heating panel and experience the perfect combination of style, comfort, and energy efficiency.

WHERE INFRARED WORKS

Heating designed for real spaces.

From everyday living spaces to demanding commercial environments, infrared heating provides a flexible heating solution across a wide range of applications.

01

Domestic applications

Comfortable, discreet heating solutions designed around the way you use your home.

Homes

Homes

→
Student Accommodation

Student Accommodation

→
Offices

Offices

→
Social Housing & Council Homes

Social Housing & Council Homes

→
02

Commercial applications

Practical infrared heating for commercial, industrial and specialist environments.

Care Homes

Care Homes

→
Hospitals

Hospitals

→
Offices

Offices

→
Hotels

Hotels

→
Not sure where to start?

Explore our complete guide to infrared heating by room, building type and application.

Explore all applications →
Diagram showing how infrared heating warms people and surrounding surfaces
UNDERSTANDING INFRARED

How does infrared
heating work?

Infrared heating works differently from conventional convection heating. Rather than relying primarily on warming and circulating the air, infrared transfers radiant heat directly to people and surfaces within the room.

These surfaces absorb the radiant energy and gradually release warmth back into the space, helping create a comfortable and consistent heating environment.

With no fans or forced-air circulation, infrared heaters operate silently while delivering comfortable radiant warmth into the space.

01 Radiate

Infrared energy travels from the heater.

02 Absorb

People and surfaces absorb the radiant warmth.

03 Warm

Surfaces help release warmth back into the room.

Read our complete infrared heating guide →
THE BENEFITS

Why choose infrared heating?

A modern approach to heating that combines radiant comfort, individual room control and a discreet, space-saving design.

Efficient Heating

Radiant heat can be directed where it is needed rather than relying solely on warming and circulating the air.

No Forced Air

With no fans required, infrared heating avoids the continuous forced-air circulation associated with many conventional systems.

Radiant Comfort

Infrared warms people and surrounding surfaces directly, creating a comfortable radiant warmth throughout the space.

Individual Room Control

Divide heating into zones so individual rooms or areas can be controlled according to how and when they are used.

Responsive Warmth

Radiant warmth is delivered directly into the occupied space once the heater reaches operating temperature, without relying on forced-air circulation.

Low Maintenance

With no pumps, fans or complex moving components in the heater, ongoing maintenance requirements are minimal.

Silent Operation

No fans or motors means heating operates silently, making infrared particularly suited to bedrooms, offices and quiet spaces.

Warms Surfaces

By warming walls and other surfaces directly, infrared can help keep surface temperatures warmer within the heated space.

Discover more about infrared heating and whether it is right for your space.

Explore all the benefits →
International Delivery

Worldwide Shipping Available

We deliver infrared heating products across Europe and selected worldwide destinations, with fully tracked international shipping available.

European & Worldwide Delivery
FedEx Tracked Delivery
Residential & Commercial
International Support

Delivery availability and charges vary by destination.

Shipping information →
NEED SOME HELP?

Expert guidance.
Real people, real advice.

Choosing the right infrared heating solution is about more than wattage alone. Our team can help you work out the right products, output and control setup for your space.

Already know your room dimensions? Use our free Wattage Calculator for an instant starting point.

Use the Wattage Calculator →
SPEAK TO OUR TEAM
CALL OUR TEAM 01204 520544 → EMAIL OUR TEAM info@infraredheatingsupplies.com →
UK Specialists Dedicated infrared heating expertise
10+ Years Experience helping customers find the right solution
COMMON QUESTIONS

Frequently asked
questions.

Helpful answers to some of the most common questions about choosing, installing and using infrared heating.

01 How do I calculate what wattage I need?

The heating requirement depends on factors including room dimensions, insulation, construction and intended use. Use our Wattage Calculator to calculate the recommended heating requirement for your space.

02 Can infrared heaters be used in bathrooms?

Certain infrared heaters can be suitable for bathroom installations. The correct product and IP rating must be selected for the intended location, and installation must comply with applicable electrical requirements. Where required, installation should be completed by a suitably qualified electrician.

03 How much does infrared heating cost to run?

Running cost depends on the heater wattage, your electricity tariff and how long the heater operates. For example, a 1kW heater uses 1kWh of electricity when operating continuously at full power for one hour. Thermostatic controls can cycle the heater on and off as required to maintain the selected room temperature.

04 Do I need an electrician to install my heater?

This depends on the heater and installation method. Suitable plug-in models can simply connect to an appropriate socket. Hardwired installations, bathroom installations and electrical connections that form part of the fixed wiring should be completed by a suitably qualified electrician.

05 Are infrared heaters suitable for homes with children and pets?

Infrared heating is widely used in residential environments, but heaters can become hot during operation. Every heater should be installed, positioned and used in accordance with its instructions, with appropriate consideration given to children, pets and the surrounding space.

06 Can infrared heating help with condensation and damp?

Infrared heating warms people and surfaces directly, which can help maintain warmer surface temperatures and may help reduce conditions that contribute to surface condensation. However, damp and mould can have several causes, including ventilation, moisture and building defects, so heating alone should not be considered a solution to every damp or mould problem.

Looking for more information?

Visit our full FAQ page
