What Size Infrared Heater Do I Need? A Complete Wattage Guide
Choosing the right infrared heater starts with the amount of heat the room requires - not simply the physical dimensions of the panel.
Room size matters, but insulation, building type, ceiling height and heat loss can all change the wattage required.
What Wattage Infrared Heater Do I Need?
The correct infrared heater wattage depends on the heating requirement of the individual room.
A larger room will generally require more output than a smaller one, but floor area alone is not enough to size the system accurately.
A modern, well-insulated room can require less heating input than an older room of exactly the same size with greater heat loss.
Calculate the room's required wattage first. Then choose the heater - or combination of heaters - that provides the appropriate output.
“What Size Heater?” Really Means “How Many Watts?”
When people ask what size infrared heater they need, they are often talking about two different things:
- The physical dimensions of the heater
- The heating output in watts
For sizing a heating system, wattage is the important starting point.
Physical dimensions become relevant afterwards because different heater designs and wattages come in different formats.
So rather than asking:
Once you know the required output, you can decide which panel size, heater type and mounting position best suit the room.
Don't Choose an Infrared Heater Using Square Metres Alone
You will often see heaters advertised using statements such as “suitable for X m²”.
That can provide a rough indication, but it should not be treated as a universal heating calculation.
Imagine two rooms with exactly the same floor area.
One is inside a modern, well-insulated property with good glazing.
The other is in an older building with poorer insulation, more exposed external surfaces and greater heat loss.
Those rooms should not automatically be given the same heating wattage simply because their floor dimensions match.

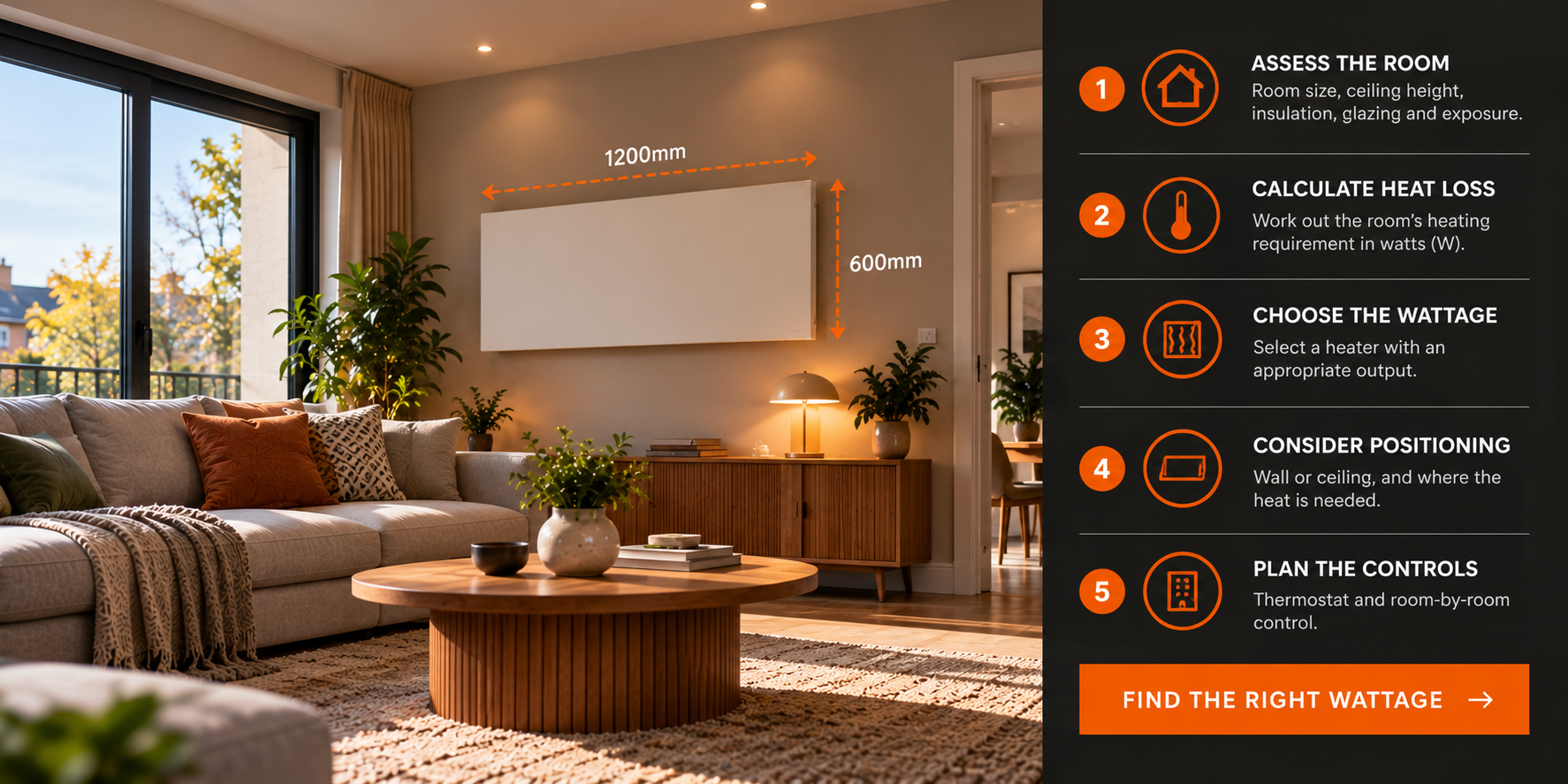

Size the Room First. Choose the Heater Second.
A more useful infrared heating process is:
- Measure the room
- Consider the building and insulation
- Establish the heating requirement in watts
- Choose the appropriate total heater output
- Decide whether that output should come from one or several heaters
- Plan the mounting positions
- Plan the thermostat/control arrangement
IHS has a dedicated Infrared Heating Wattage Calculator to help with the first part of that process.
6 Factors That Affect Infrared Heater Size
Room Dimensions
Length and width matter, but ceiling height also changes the volume of the space being heated and should not simply be ignored.
Insulation
Better-insulated buildings generally retain heat more effectively, while poorly insulated spaces can require greater heating input.
Building Age & Type
A modern home, older property, commercial building and heritage space can have very different heat-loss characteristics.
Glazing & External Exposure
Windows, external walls and other exposed parts of the building can affect the room's heating requirement.
Ceiling Height
Tall rooms should not automatically be treated in exactly the same way as otherwise similar rooms with standard ceiling heights.
How the Space Is Used
Domestic living areas, commercial spaces, churches and specialist applications can require different heating approaches.
How to Choose the Right Infrared Heater Wattage
Measure the Room
Record the room's length, width and ceiling height accurately. Don't estimate if you can avoid it.
Assess the Building
Consider whether it is a modern/new-build property, an older home, a commercial building, a church or another type of space.
Consider Insulation & Heat Loss
Think about insulation quality, glazing and how exposed the room is rather than treating every property identically.
Calculate the Required Wattage
Use the room information to establish the approximate heating requirement rather than selecting a heater from floor area alone.
You can use the IHS Wattage Calculator for this stage.
Choose the Heater Output
Once you have the required wattage, choose a heater or combination of heaters that provides the appropriate total output.
Plan Positioning & Controls
Finally, consider where the heaters can be positioned effectively and how the room will be thermostatically controlled.
What If My Room Needs 1,200W?
Imagine your room assessment indicates that approximately 1,200W of heating output is required.
That does not necessarily mean you need one 1,200W infrared panel.
The next decision is how that total output should be distributed within the room.
Depending on the available products, room layout and mounting positions, the required output could potentially be delivered using:
- One appropriately sized heater
- Two smaller heaters
- Another suitable combination providing the required total output
This is where heater sizing and heater quantity become separate decisions.
We cover that next stage in How Many Infrared Panels Do I Need?.
Important: the 1,200W figure above is simply an example of how to divide a known heating requirement. It is not a recommendation for a particular room size.
Is One Larger Infrared Heater Better Than Two Smaller Ones?
Not automatically.
Once the total heating requirement is known, the best distribution depends on the room.
A single heater may work well where there is a suitable mounting position and the radiant coverage fits the space.
In another room, dividing the output across multiple heaters may give more practical positioning.
Factors can include:
- Room shape
- Furniture
- Available wall space
- Available ceiling positions
- Where people spend time
- Potential obstructions
Again, this is why the article How Many Infrared Panels Do I Need? is the next useful step after establishing wattage.
Does Mounting Position Affect the Heater Size?
The room's heating requirement does not disappear because you move a heater from a wall to the ceiling.
But mounting position can affect how effectively the radiant output is directed into the occupied area.
This means heater selection should consider both:
- The required wattage
- The practical radiant position
Ceiling mounting can be useful where wall space is limited, while wall mounting may suit rooms with a suitable unobstructed position.
However, not every infrared heater is suitable for every mounting format.
Always follow the installation requirements of the particular product.
For the full comparison, see Ceiling vs Wall-Mounted Infrared Panels.
How Do I Size Infrared Heating for an Entire House?
Don't calculate a whole property as one large room.
Instead, work through the house room by room.
For example:
- Living room - calculate its heating requirement
- Kitchen - calculate separately
- Bedroom 1 - calculate separately
- Bedroom 2 - calculate separately
- Bathroom - calculate separately
- Office or spare room - calculate separately
You can then select the appropriate heater output and control arrangement for each space.
This also makes it possible to design the system around the way different rooms are actually occupied.
Read Can Infrared Heating Heat a Whole House? for the complete whole-property planning guide.
Why Choosing Too Little Wattage Can Be a False Economy
Buying a smaller heater because it costs less initially does not change the room's heating requirement.
If the room requires more heat than the installed system can reasonably provide, the heater may struggle to achieve the desired conditions.
The thermostat cannot create additional heating capacity that isn't installed.
Correct sizing comes before thermostat optimisation.
Is a Bigger Infrared Heater Always Better?
No.
The aim isn't to install the highest wattage that physically fits the room.
It is to provide an appropriate level of heating output for the space and then control that system properly.
Excessively oversizing without a reason can increase installed electrical capacity and purchase cost unnecessarily.
Correct sizing is therefore about matching the system to the room rather than simply choosing “more power”.
Does the Thermostat Change the Wattage I Need?
A thermostat controls when the heating operates according to the room temperature and control setup.
It does not replace the need to install sufficient heating capacity.
If separate rooms need independent temperatures or schedules, they also need an appropriate independent control arrangement.
Read Do Infrared Heaters Need a Thermostat? for the next part of the system design.
You can also compare Built-In Thermostat vs Non-Thermostat Infrared Heaters.
Heater Sizing Changes with the Type of Property
Lower Heat Loss Can Change the Requirement
Modern construction and stronger insulation can reduce the amount of heating input required compared with a more heat-loss-heavy building of similar dimensions.
Construction Matters
Older buildings can have different insulation, glazing and exposure characteristics, so they should not automatically use the same wattage assumptions as a modern home.
Different Spaces, Different Demands
Offices, workshops and other commercial environments can have larger volumes, different occupancy and different heat-loss characteristics.
Large & High-Ceiling Spaces
Churches and heritage buildings can require a very different heating approach from a standard domestic room, particularly where ceilings are high and the building volume is large.
This is exactly why a single “watts per square metre” statement should not be treated as a universal rule for every building.
How Does Heater Wattage Affect Running Cost?
Wattage tells you the electrical input of the heater while it is operating at full power.
For example, a 1,000W heater is rated at 1kW.
If it draws its full rated input continuously for one hour, that represents 1kWh of electricity consumption.
But that does not mean the heater necessarily draws full power continuously every hour of every day.
Actual energy use depends on factors including:
- Operating time
- Thermostat control
- Set temperature
- Room heat loss
- Occupancy
- Electricity tariff
See our Infrared Heating Running Costs guide for a more detailed explanation.
From Room Measurements to the Right Infrared Heater
Find the Required Wattage
Calculate the heating requirement for the individual room.
Decide the Number of Heaters
Determine whether the total output is better provided by one heater or distributed across several.
Choose Wall or Ceiling Positions
Consider radiant coverage, furniture, available mounting surfaces and the installation requirements of the specific heater.
Choose the Controls
Decide how each room or zone will be thermostatically controlled.
Plan the Installation
Consider mounting and electrical requirements before purchasing the complete system.
See our Infrared Heater Installation Guide and Infrared Heating Installation Cost guide.
Infrared Heater Sizing FAQs
What size infrared heater do I need?
The correct size depends on the heating requirement of the room. Consider room dimensions, ceiling height, insulation, building type and heat loss before choosing the required wattage.
How many watts of infrared heating do I need?
There is no single wattage suitable for every room of a particular floor area. Calculate the heating requirement using the room dimensions and relevant building characteristics, then choose heater output to match.
Can I size an infrared heater by square metres?
Floor area can form part of the calculation, but it should not be the only factor. Ceiling height, insulation, glazing, building type and exposure can change the heating requirement.
Is it better to use one large infrared panel or two smaller panels?
It depends on the room layout and available mounting positions. Once the total wattage is known, that output can sometimes be provided by one heater or distributed across multiple heaters to suit the space.
Can an infrared heater be too small for a room?
Yes. If the installed heating capacity is below the room's requirement, the system may struggle to achieve the desired conditions. A thermostat cannot compensate for insufficient installed output.
Is a bigger infrared heater always better?
No. The objective is to provide an appropriate level of heating output for the room rather than simply installing the highest wattage available.
Do I calculate a whole house at once?
It is generally more useful to calculate the heating requirement room by room so the heater output, positioning and controls can be designed for each space.
Does an infrared heater need a thermostat?
Appropriate thermostatic control is important for controlling room temperature and operating times. The exact control arrangement depends on the heater and installation.
Ready to Choose Your Infrared Heaters?
Once you know the required wattage, the next step is choosing the right combination of heaters, mounting positions and controls for the room.
Don't start with the physical panel size. Start with the heating requirement.
Read our Complete Infrared Heating Guide, explore our infrared heating ranges, or speak to the IHS team about your project →
