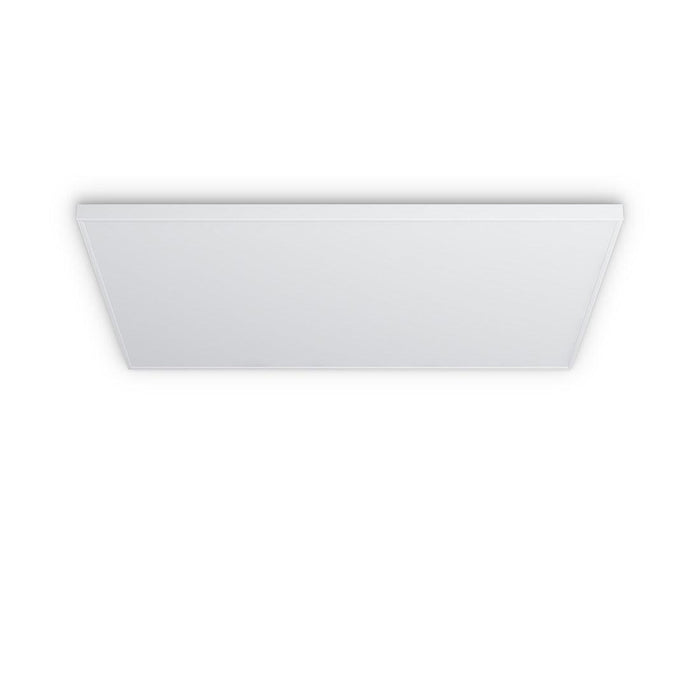

Ceiling Mounted Infrared Heating Panel | (1005x605mm) 660w

Q: How much does infrared heating cost to run?

Running cost depends on heater wattage, electricity tariff and operating time. A 1kW heater uses 1kWh of electricity when operating continuously at full power for one hour. Thermostatic controls can cycle the heater on and off to maintain the selected room temperature.

SKU CP10060GT660

£228.00 - £228.00

£228.00

£228.00 - £228.00

£228.00

Availability:

In stock

Key Features

660W Far Infrared Heating
Discreet Ceiling-Mounted Design
Surface Mounts to Suitable Solid or Plasterboard Ceilings
Netmostat Smart Control Available Separately
Silent, Light-Free Radiant Heating
10-Year RADI8 Warranty

Not sure which wattage you need? Every space is different. Calculate the recommended heating requirement for your room.

Calculate my wattage

COMPARE OTHER OPTIONS IN THIS RANGE

Other options available Compare sizes, outputs and prices from this product range.

Free UK delivery

Next working day delivery on in-stock orders placed before 4pm Monday–Friday, excluding bank holidays. Northern Ireland, Highlands and islands take longer.

View delivery details

Ceiling Mounted Infrared Heating Panel | (1005x605mm) 660w £228.00

PRODUCT DETAILS

660W Infrared Ceiling Panel for Discreet, Space-Saving Heating

The RADI8 660W infrared ceiling panel provides discreet electric heating from above while keeping walls and floors completely clear. Designed for homes and commercial interiors, its slim white finish sits neatly against the ceiling for a clean, unobtrusive installation.

With a 660W output, this model is suited to a wide range of rooms including lounges, bedrooms, offices, salons, treatment rooms and waiting areas. Far infrared technology delivers radiant warmth towards people, objects and surrounding surfaces rather than relying primarily on heating and circulating the air.

The panel is designed specifically for surface mounting to suitable plasterboard or solid ceilings. It is not intended for wall mounting or installation within suspended/grid ceiling systems. This standard model does not contain a built-in thermostat, allowing it to be paired with a separate heating control such as the RADI8 Netmostat.

The panel must be hardwired into the electrical supply by a qualified electrician in accordance with the supplied installation instructions. It is backed by a 10-year RADI8 warranty.

Far Infrared Heating from the Ceiling

Ceiling mounting allows radiant heat to be delivered into the room from above while leaving valuable wall space available for furniture, storage, artwork and other fixtures.

Instead of relying on a fan to distribute heated air around the room, the panel emits far infrared energy towards people and surfaces within its heating zone, creating a quiet and unobtrusive source of everyday warmth.

Designed Specifically for Surface-Mounted Ceiling Installation

This 660W panel is designed to sit close to a suitable plasterboard or solid ceiling, providing a discreet alternative to conventional wall-mounted radiators.

It is not designed for wall mounting, portable use or installation as a suspended/grid ceiling tile. If you require a heater specifically designed to fit within a suspended ceiling grid, choose one of our compatible grid ceiling panel models instead.

Carbon Crystal Heating Technology

The panel incorporates RADI8 carbon crystal heating technology designed to distribute heat across the panel surface and produce consistent far infrared radiant warmth.

An insulated construction and reflective backing help direct the generated heat towards the room rather than unnecessarily towards the ceiling structure.

Silent, Light-Free Operation

With no fan or motor required to distribute the heat, the RADI8 ceiling panel operates silently and without the visible glow associated with some forms of infrared heating.

Its simple solid-state heating design also means there are no fans, filters or other routine moving components requiring regular maintenance.

Suitable for Homes & Commercial Interiors

The discreet ceiling-mounted format makes the 660W panel suitable for a broad range of applications, including:

Living rooms and lounges
Bedrooms
Home offices
Commercial offices and meeting rooms
Salons and treatment rooms
Waiting and reception areas

External Thermostat Control

This standard 660W model does not contain a built-in thermostat, Wi-Fi controller or remote control. It can instead be connected to a suitable external thermostat, allowing temperature control to be positioned conveniently within the room.

Pair the panel with our Netmostat Smart Thermostat to add room temperature control, programmable heating schedules and Wi-Fi app control.

Professional Hardwired Installation

This ceiling panel must be hardwired into the electrical supply by a qualified electrician. When using an external thermostat such as the RADI8 Netmostat, the panel must be appropriately wired through the thermostat and electrical supply.

The panel should only be installed on a suitable ceiling and all positioning, mounting and electrical requirements provided in the supplied installation instructions must be followed.

10-Year RADI8 Warranty

The RADI8 660W infrared ceiling panel is designed as a long-term electric heating solution and is backed by a 10-year warranty, providing additional reassurance for domestic and commercial installations.

Is 660W the Right Size for Your Room?

The amount of heating required cannot be determined accurately from floor area alone. Room dimensions, ceiling height, insulation, glazing, building construction and intended use all influence the required wattage.

Use our Infrared Heating Wattage Calculator to estimate the heating requirement for your room and determine whether the 660W panel, another output or multiple panels are most appropriate.

Specifications

Wattage 660w

Dimensions(mm) 1005 x 605 x 35

Surface Material Premium IR Ceramic coating, Aluminium Frame

Voltage 220-240V/50Hz

IP Rating IP54 – Splash and Dust proof

Surface Temperature 75-95°C

Weight 6.5kg

Recommended Fixing Ceiling

Quality & Safety UKCA, CE, Rohs, Lot 20 (when used with our smart thermostat)

Warranty 10

Controls & Accessories

Delivery & Returns

Mainland UK Delivery
Orders are normally dispatched on a next working day delivery service once your order is ready to leave us.

Non-Mainland UK
Deliveries to non-mainland UK locations typically take 3–5 working days.

International Delivery
For Ireland and international orders, please contact our team for delivery options and shipping costs.

30-Day Returns
Changed your mind? Eligible products can be returned within 30 days in accordance with our Returns Policy

View Returns Policy

Installation & Maintenance

This compact white infrared panel heater includes brackets for easy mounting on the ceiling. As there are no moving parts, there is no maintenance required for our panel heaters. They can be cleaned with a damp cloth when switched off

It is recommended to keep a minimum clearance of 20 cm from light fittings and at least 50 cm from furniture positioned in front of the heater.

Safety
All our infrared heaters feature overheat protection, limiting the surface temperature from 75°C to 95°C, and all heating panels comply with safety standards (CE, UKCA, TüV, GS)

Downloads

Instruction Manual ↓ Product Datasheet ↓

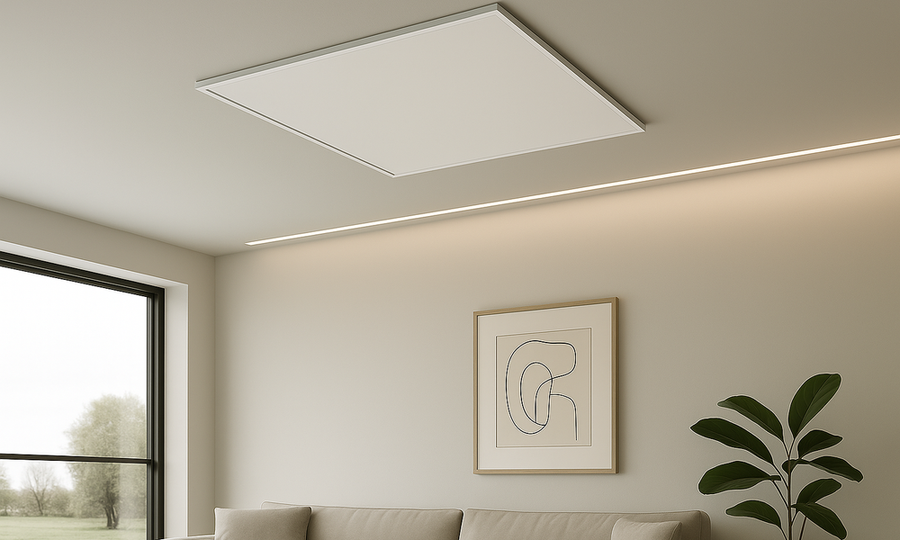

Ceiling Mount Infrared Heaters installed in an interior

Advanced Infrared

Radiant warmth is delivered directly into the room without relying on forced-air circulation.

Sleek Design

A slim, contemporary profile designed to integrate neatly into modern interiors.

Easy Installation

Designed for straightforward installation with mounting options suited to the heater and application.

Discreet Heating

Free up valuable floor space with heating designed around your room rather than traditional radiators.

Comfortable Radiant Warmth

Infrared technology delivers radiant warmth without relying on fans or forced-air circulation.

Efficient Zone Heating

Heat individual rooms or areas independently, giving you greater control over where heating is used.

HEATING CONTROLS

Heating Controls

Add Netmostat Smart Control

This standard RADI8 660W infrared ceiling panel does not have a thermostat built into the panel, giving you flexibility over where the room temperature control is positioned.

Pair it with our Netmostat Smart Thermostat, available separately, to add room temperature control, programmable heating schedules and Wi-Fi app control.

To use an external thermostat, the ceiling panel must be appropriately hardwired through the thermostat and electrical supply. Installation should be completed by a qualified electrician in accordance with the supplied instructions and applicable electrical regulations.

Want the controls built into the panel? RADI8 ceiling panels are also available with built-in thermostat and smart-control options, giving you an alternative where integrated temperature control is preferred.

Domestic applications

Comfortable, discreet heating solutions designed around the way you use your home.

Commercial applications

Practical infrared heating for commercial, industrial and specialist environments.

Offices

→

Retail Shops

→

Hotels

→

Care Homes

→

Not sure where to start?

Explore our complete guide to infrared heating by room, building type and application.

Explore all applications →

Diagram showing how infrared heating warms people and surrounding surfaces

UNDERSTANDING INFRARED

How does infrared
heating work?

Infrared heating works differently from conventional convection heating. Rather than relying primarily on warming and circulating the air, infrared transfers radiant heat directly to people and surfaces within the room.

These surfaces absorb the radiant energy and gradually release warmth back into the space, helping create a comfortable and consistent heating environment.

With no fans or forced-air circulation, infrared heaters operate silently while delivering comfortable radiant warmth into the space.

01 Radiate

Infrared energy travels from the heater.

02 Absorb

People and surfaces absorb the radiant warmth.

03 Warm

Surfaces help release warmth back into the room.

Read our complete infrared heating guide →

Efficient Heating

Radiant heat can be directed where it is needed rather than relying solely on warming and circulating the air.

No Forced Air

With no fans required, infrared heating avoids the continuous forced-air circulation associated with many conventional systems.

Radiant Comfort

Infrared warms people and surrounding surfaces directly, creating a comfortable radiant warmth throughout the space.

Individual Room Control

Divide heating into zones so individual rooms or areas can be controlled according to how and when they are used.

Responsive Warmth

Radiant warmth is delivered directly into the occupied space once the heater reaches operating temperature, without relying on forced-air circulation.

Low Maintenance

With no pumps, fans or complex moving components in the heater, ongoing maintenance requirements are minimal.

Silent Operation

No fans or motors means heating operates silently, making infrared particularly suited to bedrooms, offices and quiet spaces.

Warms Surfaces

By warming walls and other surfaces directly, infrared can help keep surface temperatures warmer within the heated space.

International Delivery

Worldwide Shipping Available

We deliver infrared heating products across Europe and selected worldwide destinations, with fully tracked international shipping available.

European & Worldwide Delivery

FedEx Tracked Delivery

Residential & Commercial

International Support

NEED SOME HELP?

Expert guidance.
Real people, real advice.

Choosing the right infrared heating solution is about more than wattage alone. Our team can help you work out the right products, output and control setup for your space.

Already know your room dimensions? Use our free Wattage Calculator for an instant starting point.

Use the Wattage Calculator →

SPEAK TO OUR TEAM

CALL OUR TEAM 01204 520544 → EMAIL OUR TEAM info@infraredheatingsupplies.com →

UK Specialists Dedicated infrared heating expertise

10+ Years Experience helping customers find the right solution

01 How do I calculate what wattage I need?

The heating requirement depends on factors including room dimensions, insulation, construction and intended use. Use our Wattage Calculator to calculate the recommended heating requirement for your space.

02 Can infrared heaters be used in bathrooms?

Certain infrared heaters can be suitable for bathroom installations. The correct product and IP rating must be selected for the intended location, and installation must comply with applicable electrical requirements. Where required, installation should be completed by a suitably qualified electrician.

03 How much does infrared heating cost to run?

Running cost depends on the heater wattage, your electricity tariff and how long the heater operates. For example, a 1kW heater uses 1kWh of electricity when operating continuously at full power for one hour. Thermostatic controls can cycle the heater on and off as required to maintain the selected room temperature.

04 Do I need an electrician to install my heater?

This depends on the heater and installation method. Suitable plug-in models can simply connect to an appropriate socket. Hardwired installations, bathroom installations and electrical connections that form part of the fixed wiring should be completed by a suitably qualified electrician.

05 Are infrared heaters suitable for homes with children and pets?

Infrared heating is widely used in residential environments, but heaters can become hot during operation. Every heater should be installed, positioned and used in accordance with its instructions, with appropriate consideration given to children, pets and the surrounding space.

06 Can infrared heating help with condensation and damp?

Infrared heating warms people and surfaces directly, which can help maintain warmer surface temperatures and may help reduce conditions that contribute to surface condensation. However, damp and mould can have several causes, including ventilation, moisture and building defects, so heating alone should not be considered a solution to every damp or mould problem.
