Infrared Heating Panel (600 x 600) Mirror Heater | 320w |

Q: How much does infrared heating cost to run?

Running cost depends on heater wattage, electricity tariff and operating time. A 1kW heater uses 1kWh of electricity when operating continuously at full power for one hour. Thermostatic controls can cycle the heater on and off to maintain the selected room temperature.

SKU MH6060M320

£245.00 - £245.00

£245.00

£245.00 - £245.00

£245.00

Availability:

Low stock

Key Features

320W Far Infrared Mirror Heating
600 × 600mm Tempered Mirror Design
IP54 Rated for Bathroom Installation
Ultra-Slim 12mm Wall-Mounted Profile
Netmostat Smart Control Available Separately
10-Year RADI8 Warranty

Not sure which wattage you need? Every space is different. Calculate the recommended heating requirement for your room.

Calculate my wattage

COMPARE OTHER OPTIONS IN THIS RANGE

Other options available Compare sizes, outputs and prices from this product range.

Free UK delivery

Next working day delivery on in-stock orders placed before 4pm Monday–Friday, excluding bank holidays. Northern Ireland, Highlands and islands take longer.

View delivery details

Infrared Heating Panel (600 x 600) Mirror Heater | 320w | £245.00

PRODUCT DETAILS

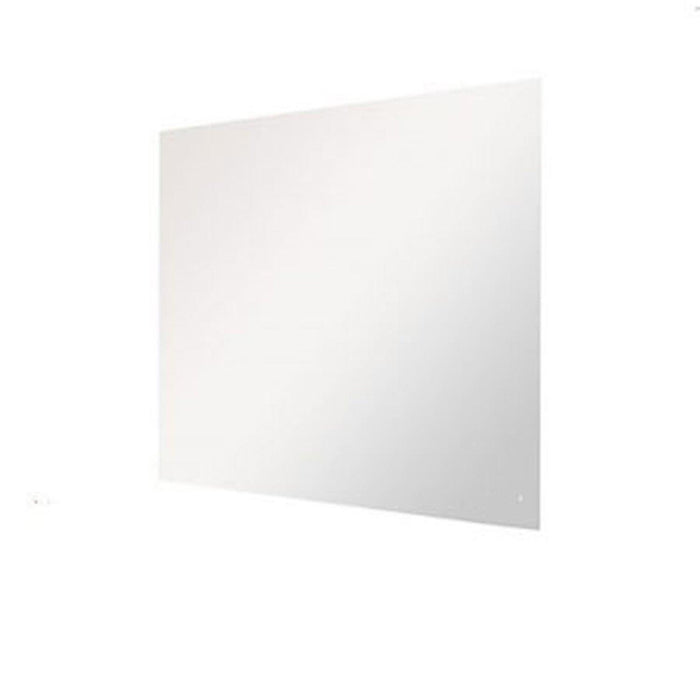

320W Mirror Infrared Heater – 600 × 600mm

The RADI8 320W Mirror Infrared Heater combines far infrared heating with a functional 600 × 600mm tempered mirror, providing two useful features within one slim wall-mounted panel.

Its compact square format makes this model particularly well suited to bathrooms, en-suites, bedrooms, dressing areas, hallways and hotel rooms where a mirror is already required but available wall space may be limited.

With a 320W heating output, the panel radiates warmth towards people and surrounding surfaces rather than relying on a fan to circulate heated air. The IP54-rated construction also makes it suitable for appropriate bathroom installations.

This standard model does not include a built-in thermostat. For thermostatic, scheduling and app-based control, it can be paired with the RADI8 Netmostat Smart Thermostat, available separately. The heater is backed by a 10-year RADI8 warranty.

Compact 600 × 600mm Mirror Heater

Measuring 600 × 600mm, this is a compact square option within the RADI8 rectangular mirror heater range.

Its proportions make it particularly useful where both heating and a functional mirror are required without using separate areas of wall space for each.

320W Far Infrared Heating

The heater provides 320W of far infrared heating, radiating warmth towards people and surrounding surfaces rather than depending primarily on convective airflow.

No fan is required to distribute the heat, providing silent, light-free operation for bathrooms, bedrooms and other quiet interior spaces.

Tempered Mirror Surface

The front of the heater is manufactured from tempered mirror, allowing the panel to function as a practical everyday mirror as well as a heating appliance.

Tempered mirror also provides an important safety characteristic: if broken, it is designed to crumble into smaller granular pieces rather than producing the larger jagged shards associated with conventional annealed mirror glass.

IP54 Rated for Bathroom Installation

The 320W mirror heater carries an IP54 rating, providing protection against splashing water and dust.

This makes it suitable for appropriate bathroom installations when positioned correctly and installed in accordance with the supplied instructions and applicable bathroom electrical requirements.

Bathroom and hardwired installations should be completed by a qualified electrician.

Ultra-Slim 12mm Wall-Mounted Design

At just 12mm deep, the heater provides a particularly slim wall-mounted profile.

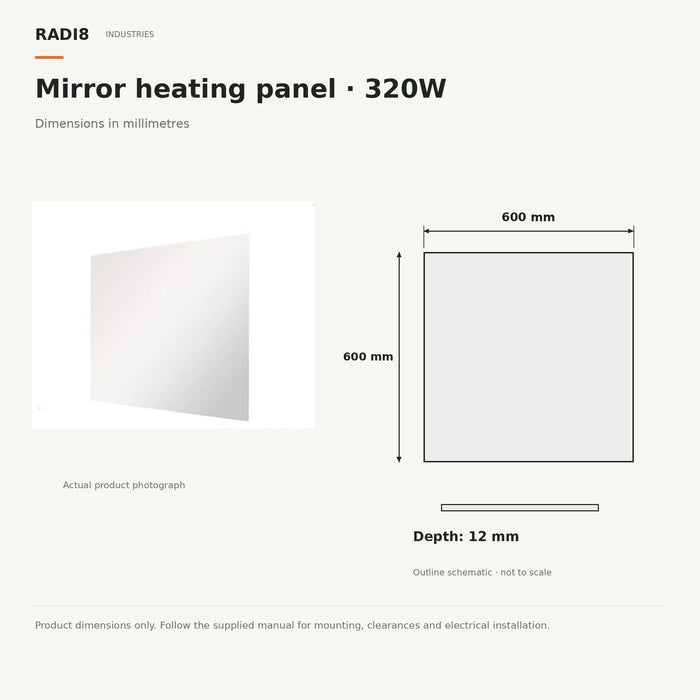

The complete panel measures 600 × 600 × 12mm and weighs approximately 9.55kg. Pre-installed brackets are provided for wall mounting, and the heater should be securely fixed to a suitable wall using appropriate fixings.

13A Plug or Hardwired Thermostat Installation

The 320W mirror heater is supplied with a UK 13A 3-pin plug.

For a permanent controlled installation, RADI8 recommends hardwiring the heater to the mains via a thermostat and fused spur.

When using the optional Netmostat, the panel must be appropriately wired to the external thermostat and mains electrical supply. We recommend this work is completed by a qualified electrician.

Optional Netmostat Smart Control

This is the standard non-thermostat version of the 320W mirror heater. For thermostatic and smart heating control, it can be paired with the RADI8 Netmostat Smart Thermostat.

The Netmostat combines a wall-mounted thermostat with app-based control, allowing you to switch the heater on or off, select the required temperature and create heating schedules using its 7-day timer.

Where Can the 320W Mirror Heater Be Used?

The compact 600 × 600mm format makes this heater particularly suited to bathrooms, en-suites, bedrooms, dressing areas, hallways, hotel rooms and other residential or commercial interiors.

It is especially useful where available wall space is limited and combining a mirror and heating panel provides a cleaner installation than fitting two separate products.

Is 320W the Right Output for Your Room?

The correct infrared heating output should be determined by the characteristics of the room rather than using a fixed square-metre coverage figure.

Room dimensions, ceiling height, insulation, glazing, external walls and building construction can all influence the wattage required.

Use our Infrared Heating Wattage Calculator to estimate the heating requirement for your space and determine whether this 320W mirror heater provides the appropriate output.

10-Year RADI8 Warranty

The RADI8 320W Mirror Infrared Heater is backed by a 10-year RADI8 warranty, providing long-term reassurance for your infrared heating installation.

Specifications

Wattage 320w

Dimensions(mm) 600 x 600 x 12

Surface Material Tempered Mirror

Voltage 220-240V/50Hz

IP Rating IP54 – Splash and Dust proof

Surface Temperature 70-90°C

Weight 9.55kg

Recommended Fixing Wall

Quality & Safety UKCA, CE, Rohs, Lot 20 (when used with our smart thermostat)

Warranty 10

Controls & Accessories

Delivery & Returns

Mainland UK Delivery
Orders are normally dispatched on a next working day delivery service once your order is ready to leave us.

Non-Mainland UK
Deliveries to non-mainland UK locations typically take 3–5 working days.

International Delivery
For Ireland and international orders, please contact our team for delivery options and shipping costs.

30-Day Returns
Changed your mind? Eligible products can be returned within 30 days in accordance with our Returns Policy

View Returns Policy

Installation & Maintenance

This mirror infrared panel heater includes pre-installed brackets for easy wall mounting. As there are no moving parts, there is no maintenance required for our panel heaters. They can be cleaned with a damp cloth when switched off

This 320w panel comes with a 13 Amp 3 pin plug, however we do recommend to hardwire it to your mains via a thermostat and fused spur

Safety
Safety is paramount, which is why our heaters come equipped with advanced safety features such as overheat protection limiting the surface temperature from 75°C to 95°C and compliance with industry standards (CE, UKCA, TüV, GS). You can rest assured knowing that your comfort is our top priority

The tempered mirror means if broken, tempered mirror crumbles into small granular chunks instead of splintering into jagged shards like annealed (non-tempered) mirrors. These chunks are less likely to cause injury, which is why tempered mirrors are considered a type of safety mirror

Downloads

Instruction Manual ↓ Product Datasheet ↓

Mirror Infrared Panels installed in an interior

Advanced Infrared

Radiant warmth is delivered directly into the room without relying on forced-air circulation.

Sleek Design

A slim, contemporary profile designed to integrate neatly into modern interiors.

Easy Installation

Designed for straightforward installation with mounting options suited to the heater and application.

Discreet Heating

Free up valuable floor space with heating designed around your room rather than traditional radiators.

Comfortable Radiant Warmth

Infrared technology delivers radiant warmth without relying on fans or forced-air circulation.

Efficient Zone Heating

Heat individual rooms or areas independently, giving you greater control over where heating is used.

HEATING CONTROLS

Heating Controls

Add Smart Control with the Netmostat

This 320W mirror heater does not have a thermostat built into the panel. For thermostatic and smart heating control, it can be paired with the RADI8 Netmostat Smart Thermostat, available separately.

The Netmostat combines a wall-mounted thermostat with app-based control and 7-day scheduling, allowing you to switch the mirror heater on or off, select the required temperature and schedule heating around how the room is used.

To use the Netmostat, the mirror heater must be hardwired to the external thermostat and mains electrical supply. RADI8 recommends a permanent installation via the thermostat and a fused spur, completed by a qualified electrician in accordance with the supplied instructions and applicable electrical regulations.

Add smart temperature control. Pair the 320W mirror heater with the RADI8 Netmostat for wall-mounted thermostat control, app management and 7-day heating schedules.

01

Domestic applications

Comfortable, discreet heating solutions designed around the way you use your home.

Homes

→

Bathrooms

→

02

Commercial applications

Practical infrared heating for commercial, industrial and specialist environments.

Care Homes

→

Hotels

→

Not sure where to start?

Explore our complete guide to infrared heating by room, building type and application.

Explore all applications →

Diagram showing how infrared heating warms people and surrounding surfaces

UNDERSTANDING INFRARED

How does infrared
heating work?

Infrared heating works differently from conventional convection heating. Rather than relying primarily on warming and circulating the air, infrared transfers radiant heat directly to people and surfaces within the room.

These surfaces absorb the radiant energy and gradually release warmth back into the space, helping create a comfortable and consistent heating environment.

With no fans or forced-air circulation, infrared heaters operate silently while delivering comfortable radiant warmth into the space.

01 Radiate

Infrared energy travels from the heater.

02 Absorb

People and surfaces absorb the radiant warmth.

03 Warm

Surfaces help release warmth back into the room.

Read our complete infrared heating guide →

Efficient Heating

Radiant heat can be directed where it is needed rather than relying solely on warming and circulating the air.

No Forced Air

With no fans required, infrared heating avoids the continuous forced-air circulation associated with many conventional systems.

Radiant Comfort

Infrared warms people and surrounding surfaces directly, creating a comfortable radiant warmth throughout the space.

Individual Room Control

Divide heating into zones so individual rooms or areas can be controlled according to how and when they are used.

Responsive Warmth

Radiant warmth is delivered directly into the occupied space once the heater reaches operating temperature, without relying on forced-air circulation.

Low Maintenance

With no pumps, fans or complex moving components in the heater, ongoing maintenance requirements are minimal.

Silent Operation

No fans or motors means heating operates silently, making infrared particularly suited to bedrooms, offices and quiet spaces.

Warms Surfaces

By warming walls and other surfaces directly, infrared can help keep surface temperatures warmer within the heated space.

International Delivery

Worldwide Shipping Available

We deliver infrared heating products across Europe and selected worldwide destinations, with fully tracked international shipping available.

European & Worldwide Delivery

FedEx Tracked Delivery

Residential & Commercial

International Support

NEED SOME HELP?

Expert guidance.
Real people, real advice.

Choosing the right infrared heating solution is about more than wattage alone. Our team can help you work out the right products, output and control setup for your space.

Already know your room dimensions? Use our free Wattage Calculator for an instant starting point.

Use the Wattage Calculator →

SPEAK TO OUR TEAM

CALL OUR TEAM 01204 520544 → EMAIL OUR TEAM info@infraredheatingsupplies.com →

UK Specialists Dedicated infrared heating expertise

10+ Years Experience helping customers find the right solution

01 How do I calculate what wattage I need?

The heating requirement depends on factors including room dimensions, insulation, construction and intended use. Use our Wattage Calculator to calculate the recommended heating requirement for your space.

02 Can infrared heaters be used in bathrooms?

Certain infrared heaters can be suitable for bathroom installations. The correct product and IP rating must be selected for the intended location, and installation must comply with applicable electrical requirements. Where required, installation should be completed by a suitably qualified electrician.

03 How much does infrared heating cost to run?

Running cost depends on the heater wattage, your electricity tariff and how long the heater operates. For example, a 1kW heater uses 1kWh of electricity when operating continuously at full power for one hour. Thermostatic controls can cycle the heater on and off as required to maintain the selected room temperature.

04 Do I need an electrician to install my heater?

This depends on the heater and installation method. Suitable plug-in models can simply connect to an appropriate socket. Hardwired installations, bathroom installations and electrical connections that form part of the fixed wiring should be completed by a suitably qualified electrician.

05 Are infrared heaters suitable for homes with children and pets?

Infrared heating is widely used in residential environments, but heaters can become hot during operation. Every heater should be installed, positioned and used in accordance with its instructions, with appropriate consideration given to children, pets and the surrounding space.

06 Can infrared heating help with condensation and damp?

Infrared heating warms people and surfaces directly, which can help maintain warmer surface temperatures and may help reduce conditions that contribute to surface condensation. However, damp and mould can have several causes, including ventilation, moisture and building defects, so heating alone should not be considered a solution to every damp or mould problem.
